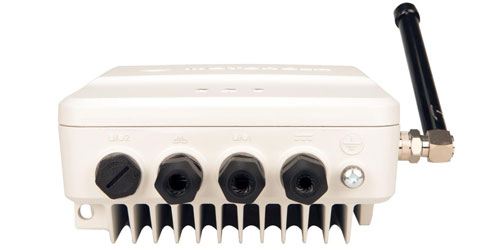

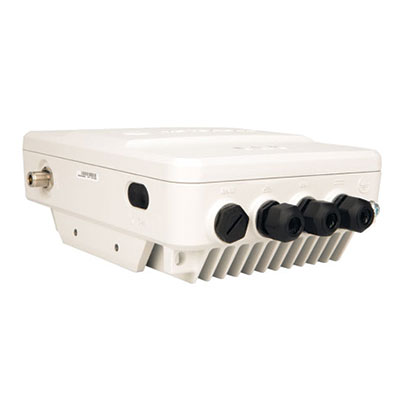

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

Motorola SLR1000 Radio Repeater

The SLR 1000 offers the full standard functionality of the other SLR repeaters in a small, weather tough, IP65 enclosure. The small form offers users the ability to mount the repeater in standard and in more unusual areas such as on walls or outside on pole-mount brackets. The repeater is a low power, low noise, fan-less design and supports all MOTOTRBO system types with a 10W/5WRF output (unduplexed/duplexed).

Read full description

Key Features

UHF and VHF versions
64 channels
1-10W RF output power
Can be deployed inside or out, mount on walls or poles
Analogue and digital modes and supports all MOTOTRBO system types
IP65 dust / water ingress protection

Perfect for:

Construction & Quarrying
Rail
Transportation & Logistics

Type: Analogue, Licenced, Digital

Full Product Description

The SLR 1000 is small and compact in size and is designed for indoor or outdoor use with an IP65 rating. The repeater is easy to install and can expand with your system, with operation in analogue modes through to digital and all the way up to Capacity Max.

The product is particularly versatile for expanding into or covering remote locations, particularly traditional dead spots such as underground or high-rise buildings, or temporary locations.

Product Features

UHF 400-527 MHz, VHF 136-174MHz
64 Channels
Channel Spacing: 12.5 / 20 / 25 kHz
1-10 W RF Output Power
Dimensions (H x W x D): 279.4 x 228.6 x 101.6 mm (11 x 9 x 4 in)
Weight: 4.54 kg (10 lbs)
Operating Temp: -30 to +60 °C (-22 to +140 °F)
IP65 - can be deployed inside & outside
Can be mounted on walls or poles, offering greater flexibility
No HVAC required
Weatherised Ethernet, DC power, and RJ45 AUX connectors
Modes of Operation: Half Duplex / Duplex
Supported System Types: Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, ConnectPlus. Analogue Conventional, Digital Voting, MPT 1327
Small & Compact, Fanless design - offering less components & no noise, easy installation,less power consumption
Reduced site requirements offering less planning than traditional repeater
Diagnostic support via webpage
Optional Accessories: Duplexer, Antenna Switch, Small Mountable Antenna

Product Downloads

Download Spec Sheet

Request a Brochure

Request a brochure to read all about our Two Way Radio Solutions.

Two-Way-Radios-brochure

COMPATIBLE Accessories

Motorola SL000387A01 Cable

SL000387A01 cable gland to waterproof connection when the Motorola SLR1000 two way radio repeater is installed outside. 6-12mm cable diameter.

Motorola SL000184A01 Cable

SL000387A01 cable gland to waterproof connection when the Motorola SLR1000 two way radio repeater is installed outside. 10-14mm cable diameter.

Motorola RRX4032A Mount Kit

RRX4032A coax protector mounting kit for use with compatible Motorola two way radio repeaters.

Motorola PMLN7773A Adaptor Kit

PMLN7773A power adaptor kit for indoor application for use with compatible Motorola two way radio repeaters. Please note the power adaptor requires the purchase of the 3087791G07 power cable in addition

Motorola PMLN7771A Adaptor Kit

PMLN7771A power adaptor kit for outdoor application for use with compatible Motorola two way radio repeaters.

Motorola PMLN7263A Antenna Switch Kit

PMLN7263A extended range antenna switch kit for use with compatible Motorola two way radio repeaters.

Motorola PMLN7213A Pole Mount Kit

PMLN7213A pole mount kit for use with compatible Motorola two way radio repeaters.

Motorola HKVN4490A License Key

HKVN4490 repeater "extended range direct mode" licence key for use with compatible Motorola devices. Activates "Extended Range Direct Mode" feature - Also known as "Single Frequency Repeater". Increases coverage area on a single frequency beyond a direct mode solution. Does not require additional frequency

Motorola HKVN4240A License Key

HKVN4240A digital voting feature licence key for use with compatible Motorola devices. This Licence key activates the Digital Voting feature in a repeater. Only the Central Voting Repeater in a system (not the Satellite Receivers) needs to have the Digital Voting feature activated

Motorola HKVN4212A License Key

HKVN4212A NAI for data licence key for use with compatible Motorola devices. This orders the Licence key to activate the “Network Application Interface for Data” feature on a repeater. This key is required for voice channels with ARS and Text Messaging

Motorola HKVN4211A License Key

HKVN4211A NAI for voice/CSBK licence key for use with compatible Motorola devices. This orders the Licence key to activate the “Network Application Interface for Voice/CSBK” feature on a repeater.

Motorola HKVN4108A License Key

HKVN4108A linked capacity plus full licence key for use with compatible Motorola devices.

Motorola HKVN4063A License Key

HKVN4063A linked capacity plus incremental licence key for use with compatible Motorola devices. Licence key (per repeater) to activate the Linked Capacity Plus (LCP) feature in a repeater where the Capacity Plus feature has previously been activated. Provides multi site configuration

Motorola HKVN4056A License Key

HKVN4056A digital telephone patch licence key for use with compatible Motorola devices.

Motorola HKVN4013A License Key

HKVN4013A Capacity plus licence key for use with compatible Motorola devices. Each repeater in a Capacity Plus system (both trunked and data revert) needs to have the Capacity Plus feature activated and this requires the purchase of a separate licence key for each repeater. Suitable for the Standard Power Repeaters including the SLR5500 & DR3000

Motorola HKFE4002A Duplexer

HKFE4002A duplexer, 480-527 MHz (5-6.5MHz) for use with compatible Motorola two way radio repeaters.

Motorola HKFE4001A Duplexer

HKFE4001A duplexer, 430-480 MHz (5-6.5MHz) for use with compatible Motorola two way radio repeaters.

Motorola HKFE4000A Duplexer

HKFE4000A duplexer, 400-430 MHz (5-6.5MHz) for use with compatible Motorola two way radio repeaters.

Motorola HKFD1003A Duplexer

HKFD1003A duplexer, 154-174 MHz with TX/RX 6-10 MHz spacing for use with compatible Motorola two way radio repeaters.

Motorola HKFD1002A Duplexer

HKFD1002A duplexer, 136-156 MHz with TX/RX 6-10 MHz spacing for use with compatible Motorola two way radio repeaters.

Motorola HKFD1001A Duplexer

HKFD1001A duplexer, 154-174 MHz with TX/RX 4-6 MHz spacing for use with compatible Motorola two way radio repeaters.

Motorola HKFD1000A Duplexer

HKFD1000A duplexer, 136-156 MHz with TX/RX 4-6 MHz spacing for use with compatible Motorola two way radio repeaters.

Motorola HKAE4005A Antenna

HKAE4005A UHF whip antenna for Motorola two way radios covering the frequency range 490–530 MHz

Motorola HKAE4004A Antenna

HKAE4004A UHF whip antenna for Motorola two way radios covering the frequency range 440–495 MHz

Motorola HKAE4003A Antenna

HKAE4003A UHF whip antenna for Motorola two way radios covering the frequency range 400–460 MHz

Motorola HKAD4005A Antenna

HKAD4005A VHF whip antenna for Motorola two way radios covering the frequency range 160–174 MHz

Motorola HKAD4004A Antenna

HKAD4004A VHF whip antenna for Motorola two way radios covering the frequency range 146–164 MHz

Motorola HKAD4003A Antenna

HKAD4003A VHF whip antenna for Motorola two way radios covering the frequency range 136–154 MHz

Motorola BR000143A01 Wall Mount Bracket

BR000143A01 wall mount bracket for use with compatible Motorola two way radio repeaters.

Motorola 30009477001 USB Cable

30009477001 USB A to USB B cable for use with compatible Motorola two way radio repeaters.

Motorola 200002725 Mounting Kit

200002725 mini duplexer mounting kit with cabling for compatible Motorola two way radio repeaters.

Motorola 3087791G07 Cable

3087791G07 mains power cable for use with Motorola repeater radios and multi-chargers.
