Type: Digital, Analogue, Licenced


Supplied with: Antenna, Battery, Charger, Belt Clip, Documentation

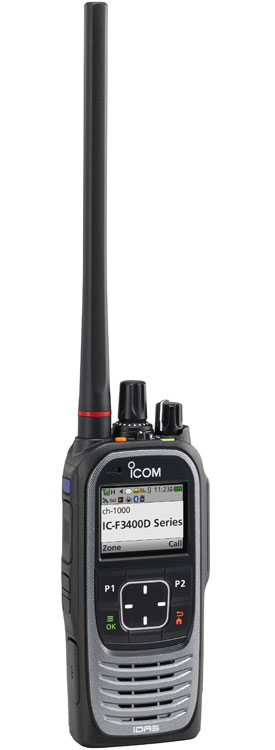

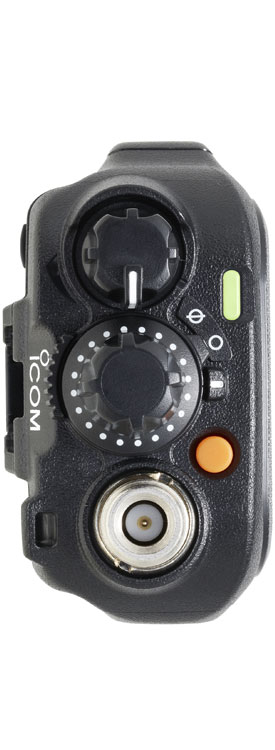

Icom IC-F4400DS

UHF Advanced Digital Portable Two Way Radio with Display and Limited Keypad

The Icom IC-F4400DS is the evolution in Icom’s two way digital business hand portable range.

The IC-F4400DS incorporates cutting edge design, superb performance and a comprehensive range of features including built-in GPS and Bluetooth, ‘ActiveNoise Cancelling’ technology, digital voice playback and a USB port for easy programming and data transfer.

With IP68 waterproof and dust-tight protection (1m depth for 1 hour). The IC-F4400DS incorporates an AquaQuake draining function which dispels water by emitting a vibrating buzz sound.

Key Features

General Features

  • 1024 Channels with 128 Zones
  • Frequency coverage: 380–470 MHz
  • MIL-STD rugged construction
  • 14-pin ACC connector with BTL amplifier output
  • VOX (Voice Operated transmission) function - VS-5MC required.
  • Internal clock
  • High-speed scanning for voting and multi-site operation
  • Tactical group function for temporary regroup user groups with optional zone copy cable
  • Normal, priority and voting scan

IDAS™ Features

  • IDAS conventional and multi-site conventional
  • Type-D single-site trunking and multi-site trunking*
  • 6.25 kHz & 12.5 kHz channel spacing
  • Analogue/Digital conventional mixed mode operation
  • Status
  • Text message
  • Call alert
  • Radio check
  • Radio Stun/Revive/Kill
  • Remote monitor

*Type-D multi-site trunking is a license key upgrade option.

Analogue FM Mode Features

  • 5-tone, CTCSS and DTCS built-in
  • DTMF autodial and DTMF decode
  • Audio compander
  • Inversion voice scrambler

Downloads (Requires PDF Reader)


IC-F4400DS Specification Sheet

UHF

FA-S76UC

FA-S76UC

UHF Cut Antenna, 380-520 MHz

Key Features

    • Frequency coverage: 380-520 MHz
    • Connector information: SMA
    • Length: 190 mm

FA-S82U

FA-S82U

UHF Antenna, 430-480 Mhz

Key Features

    • Frequency coverage: 430-480 MHz
    • Connector information: SMA
    • Length: 140 mm

FA-S82U

FA-S82US

UHF Antenna, Stubby, 450-490 MHz

Key Features

    • Frequency coverage: 450-490 MHz
    • Connector information: SMA
    • Length: 60 mm

Earpiece

HS-94

HS-94

Earpiece with Boom Microphone, 1 Pin Plug

Key Features

    • By rotating the SP part, it can be worn on either the left or right ear
    • Use together with a PTT switch box or VOX unit

HS-97

HS-97

Earphone with Throat Microphone

Key Features

    • Hands-free operation. Requires Adapter Cable, please enquire
    • Compact construction with an inconspicuous mic design (For discreet use without noticeable protrusions)
    • High sensitivity microphone for clear audio in noisy environment

PRO-P280SA Earpiece

PRO-P280SA

Noise Cancelling PTT with Lock Function and Acoustic Airtube

Key Features

    • Contact us for more information

PRO-U610SA Earpiece

PRO-U610SA

D-Ring and G-Shape Headset with In-Line PTT

Key Features

    • Contact us for more information

PRO-U650SA Earpiece

PRO-U650SA

Earpiece Set with D-Ring, G-Shape and Acoustic Tube Attachments

Key Features

    • Contact us for more information

Headset

HS-95

HS-95

Headset with Boom Microphone, 1 Pin Plug

Key Features

    • A single-ear speaker and microphone can be worn with the arm at the back of the head
    • Use together with a PTT switch box or VOX unit

RSM

HM-222HRemote Speaker Microphone

HM-222H

Remote Speaker Microphone with High Power Audio

Key Features

    • Provides 1500 mW of powerful audio output.
    • Connector Information: 14 pin spring type; Φ3.5 mm earphone jack
    • Cable Length: 460 mm; 18.1 in (when curled)
    • IP Rating: IP68 (Equivalent to the main radio)
    • Weight: 196 g (approximate)

Misc

AD-118

AD-118

Adapter for use with 6 pin Hirose Plug

Key Features

    • Allows you to use third party accessories with 6-pin Hirose plug

VS-4MC

VS-4MC

External PTT Switch, MC Type, 14 Pin Version

Key Features

    • The switch box has a dustproof / suitable structure
    • Highly oil-resistant cable is used
    • Uses a highly durable switch

Batteries

BP-284

BP-284

Li-Ion Battery, 7.2V, 3210mAh, IP67

Key Features

    • Voltage: 7.2 V
    • Current Capacity (minimum): 3070 mAh
    • Current Capacity (typical): 3210 mAh
    • Waterproof: IP68

BP-303

BP-303

Li-Ion Battery, 7.2V, 3350mAh

Key Features

    • Voltage: 7.2 V
    • Capacity (minimum): 3200 mAh
    • Capacity (typical): 3350 mAh
    • Waterproof: IP68 (Equivalent to the main radio)

Earpieces

VS-3 Bluetooth Earpiece

VS-3

Bluetooth Earpiece Microphone with PTT

Key Features

    • With PTT

Headsets

PRO-BT550

PRO-BT550

Mini Bluetooth Headset, Dual PTT/Audio/Link, including Charging Cable

Key Features

    • Can be used as a PTT device
    • Dual microphone control
    • Operating time of 12 hours,
    • Standby time of 100 hours
    • DSP (Digital Signal Processing) noise reduction technology

RSM

PRO-BT560

PRO-BT560

PTT Microphone with Bluetooth Volume Control & 3.5mm Connector for Headset

Key Features

    • Volume control
    • 3.5mm connector for headset

Single Chargers

BC-219

BC-219

Desktop Fast Charger

Key Features

    • Comes with BC-123SUK and charges the BP-283/BP-284 in 3/4.5 hours (approx.) respectively

BC-226

BC-226

Inter-connectable Single Rapid Charger (up to 6)

Key Features

    • Connectable type charger (connects up to six BC-226 units)
    • Charges the BP-290 in 2.7 hours. + BC-228: AC adapter. One AC adapter is required for up to six charger units

BC-22

BC-227

Single Rapid Charger

Key Features

    • Requires BC-06 AC adapter

Multi Chargers

BC-214N

BC-214N

6 Way Charger including Adapters and BC-157S PSU

Key Features

    • BC-157S, AC adapter supplied
    • AD-140 charger adapters are supplied with the BC-214N, depending on the charger version

UK6WAY

UK6WAY

6 Way Multi Charger, excludes Pods

Key Features

    • This six-way multi charger is extremely robust and utilises the chargers from each radio thus making it a very cost effective solution
    • This item is configured according to radio model - please contact us for further information

Misc

AD-132

AD-132

Charger Adapter BC-214

Key Features

    • Charger Adapter for BP-283/BP-284 batteries
    • AD-132 charger adapter is supplied with the BC-214, depending on BC-214’s version

Belt Clips

MB-133

MB-133

Belt Clip

Key Features

    • Aligator type

MB-136

MB-136

Swivel Belt Clip

Key Features

    • Alligator type

Cases

LC-184

LC-184

Leather Case

Key Features

    • For use with either BP-283 and BP-284
    • Can charge radio in case
    • Type: Hard

Misc

MB-96FL

MB-96FL

Fixed Long Leather Belt Hanger

Key Features

    • Used with MB-94/MB-98

MB-96N

MB-96N

Leather Swivel Belt Hanger

Key Features

    • Swivel joint of the MB-86 is required

Charging

CP-23L

CP-23L

Cigar Lighter Cable

Key Features

    • For use with BC-191, BC-193, BC-219/N, BC-225, BC-227 or BC-240

Option Board

UT-134

UT-134

AES/DES Encryption Unit

Key Features

    • Activation Key is needed for each transceiver separately for AES operation
    • No Activation Key is needed for DES function

Other

OPC-515L

OPC-515L

DC Power Cable

Key Features

    • Length: 1600 mm; 63 in
    • Fuse: 5 A x 2
    • Connector information: Φ5.5mm (outer) / Φ2.1mm (inner)

OPC-656

OPC-656

DC Power Cable

Key Features

    • For an individual charger
