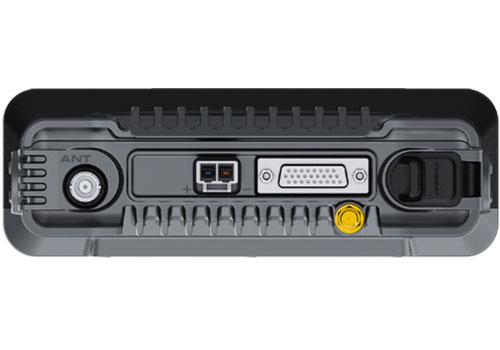

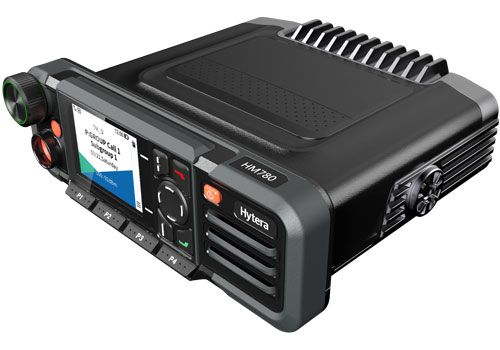

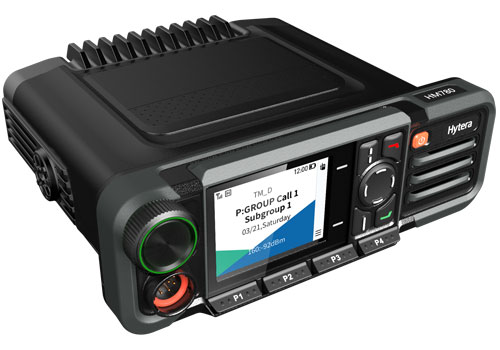

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Hytera HM785 Mobile Radio

Part of Hytera's next generation H Series range, the flexible and scalable Hytera HM785 supports a standard single control head and remote control head (single or dual) to suit different environments such as vehicles, motorcycles and control rooms.

Read full description

Key Features

UHF, VHF, Bluetooth and GNSS versions
1024 channels
Clear audio with 3W built in speaker
AI based noise cancellation
Analogue and digital (DMR Tier II) modes
IP54 dust / water ingress protection

Perfect for:

Construction & Quarrying
Rail
Transportation & Logistics
Events

Type: Analogue, Licenced, Digital

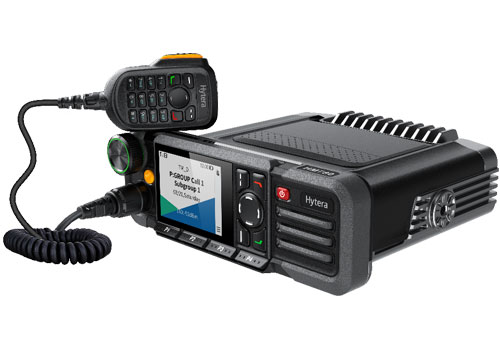

Supplied with: Documentation, Palm Microphone, Power Cable

Full Product Description

The HM785 features a new user interface facilitating easier and faster operation. With deep learning ability the AI-based noise cancellation technology guarantees clearer voice in noisy environments.

Product Features

Frequency Range: UHF 350-470MHz, VHF 136-174MHz
Channel Capacity:1024, 64 Zones
2.4inch LCD colour display
UHF and VHF variants
Low and high power variants
Dual analogue and digital operation
Dimensions (H x W x D): 61.5mm x 177mm x 179mm
Weight (with antenna and battery): 310g
Mandown
Optional Digital Trunking
Optional GNSS (GPS, GPS+Glonass, GPS+BDS)
Optional Bluetooth - 5.0
Standard 1DIN size
In-vehicle or fixed control station installation

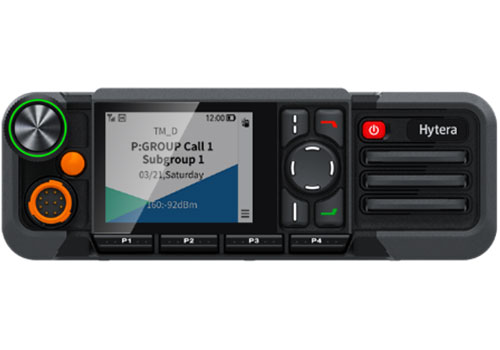

Standard control head and single or dual remote head options
IP Transit solution
6 programmable keys
IP54
