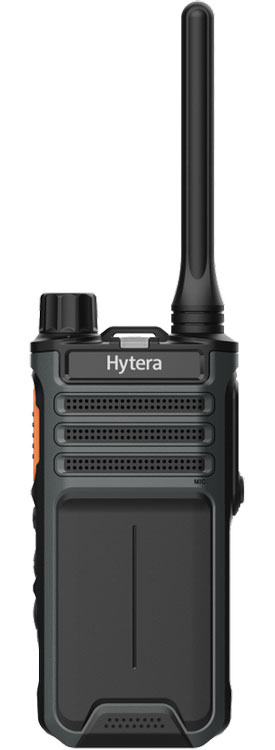

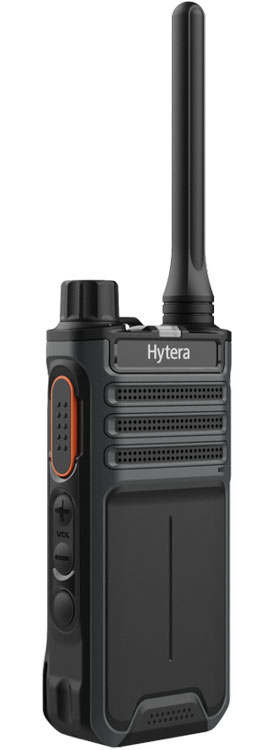

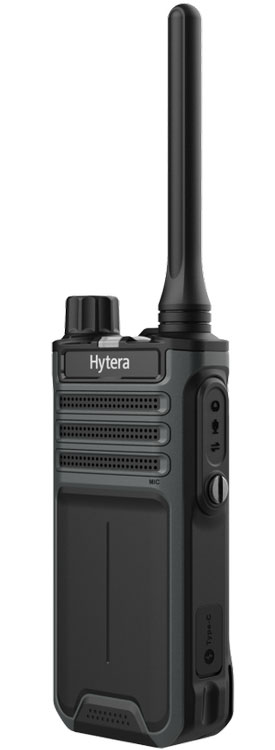

Hytera BP515LF Portable Radio

Hytera BP515LF Portable Radio

Hytera BP515LF Portable Radio

Hytera BP515LF Portable Radio

Hytera BP515LF Portable Radio

Hytera BP515LF Portable Radio

Hytera BP515LF Portable Radio

The Hytera BP515LF is compact, ergonomic and rugged licence free two way radio. Weighing just 210g it meets IP54 and MIL-STD-810G rugged certification. Delivering up to 18 hours of battery life in digital mode, it can be charged via a charger cradle or directly from a type-C USB cable.

Read full description

Key Features

UHF only, PMR446 licence free
Up to 256 channels, 4 zones
Analogue and digital modes
Up to 16 hrs battery life (standard battery)
High efficiency antenna
IP54 dust / water ingress protection

Perfect for:

Construction & Quarrying
Rail
Transportation & Logistics

Type: Analogue, Digital, Licence Free

Supplied with: Antenna, Battery, Charger, Belt Clip, Documentation, Wrist Strap

Full Product Description

The BP515LF provides a built-in intelligent noise reduction algorithm that eliminates unwanted background noise. It supports three-level noise reduction adjustment which is ideal for noisy environments. With a 3W high-power loudspeaker output of up to 90dBA, the sound is clear, loud, and with good howling suppression ability.

This licence free radio has a high sensitivity receiving module and high-efficiency monopole antenna to enhance signal penetration and achieve better transmissions, even in weak signal areas. In addition, the monopole antenna has a unique stable design that will not break and bend easily. This helps to enhance antenna life time and also helps to increase the radiation efficiency compared to traditional antennas by 10%, extending radio communication coverage.

Product Features

Frequency Range: UHF 446.0 - 446.2MHz
Channel Capacity: 256, 4 Zones
Channel Spacing: 12.5kHz
Operating Voltage: 7.4V (rated)
Battery: 1500mAh(Standard) 2200mAh (Optional)
Battery Life (5/5/90 Duty Cycle, High TX Power): Analogue: 17h (1500mAh), 22h (2200mAh). Digital: 18h (1500mAh), 24h (2200mAh)
Frequency Stability: ±0.5ppm
Antenna Impedance: 50Ω
Dimensions (H x W x D): 115 x 55 x 29.5mm
Weight (with antenna and battery): 210g ±5g
Operating Temperature: -30°C to +60°C
Storage Temperature: -40°C to +85°C
ESD: IEC 61000-4-2 (Level 4) ±8kV (contact); ±15kV (air)
Dust and Water Intrusion: IEC60529-IP54
Humidity: MIL-STD-810 G
Shock and Vibration: MIL-STD-810 G

Product Downloads

Download Spec Sheet
