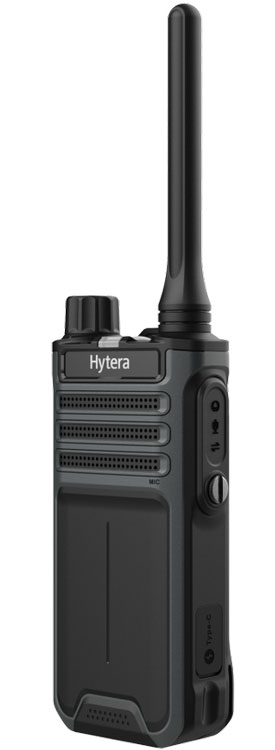

Hytera BP515 Portable Radio

The BP515 from Hytera supports both analogue and digital modes, making it compatible with your existing radio fleet be they analogue or digital systems and terminals.

Read full description

Key Features

  • UHF and VHF versions available
  • Up to 64 channels, 4 zones
  • Analogue and digital modes
  • Up to 16 hrs battery life (standard battery)
  • Bluetooth option available
  • IP54 dust / water ingress protection
Enquire Now
Perfect for:
  • Education
Type: Analogue, Licenced, Digital
Supplied with: Antenna, Battery, Charger, Belt Clip, Documentation, Wrist Strap

Full Product Description

Powerful digital features like priority interrupt, basic encryption and roaming will enhance your radio network. The Hytera BP515 series has extended range in class and features 64 channels, making group communication more flexible.

Product Features

  • Frequency Range: UHF 400-470MHz, VHF 136-174MHz
  • Channel Capacity: 64, 4 Zones
  • Channel Spacing: 12.5kHz/20kHz/25kHz
  • Operating Voltage: 7.4V
  • Battery: 1500mAh (Standard) 2000mAh (Optional)
  • Battery Life (5/5/90 Duty Cycle, High TX Power): Analogue: 12h (1500mAh) 16h (2000mAh) Digital: 16h (1500mAh) 22h (2000mAh)
  • Weight (with antenna & battery): 210g±5%g
  • Dimensions (H x W x D): 115 x 54.5 x 29.5mm
  • BT (Optional): BT 5.0 BLE+EDR
  • Operating Temperature: -30°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • ESD: IEC 61000-4-2 (Level 4) ±BkV (contact); ±15kV (air)
  • Dust and Water Intrusion: IEC60529-IP54
  • Humidity: MIL-STD-810 G
  • Shock and Vibration: MIL-STD-810 G
